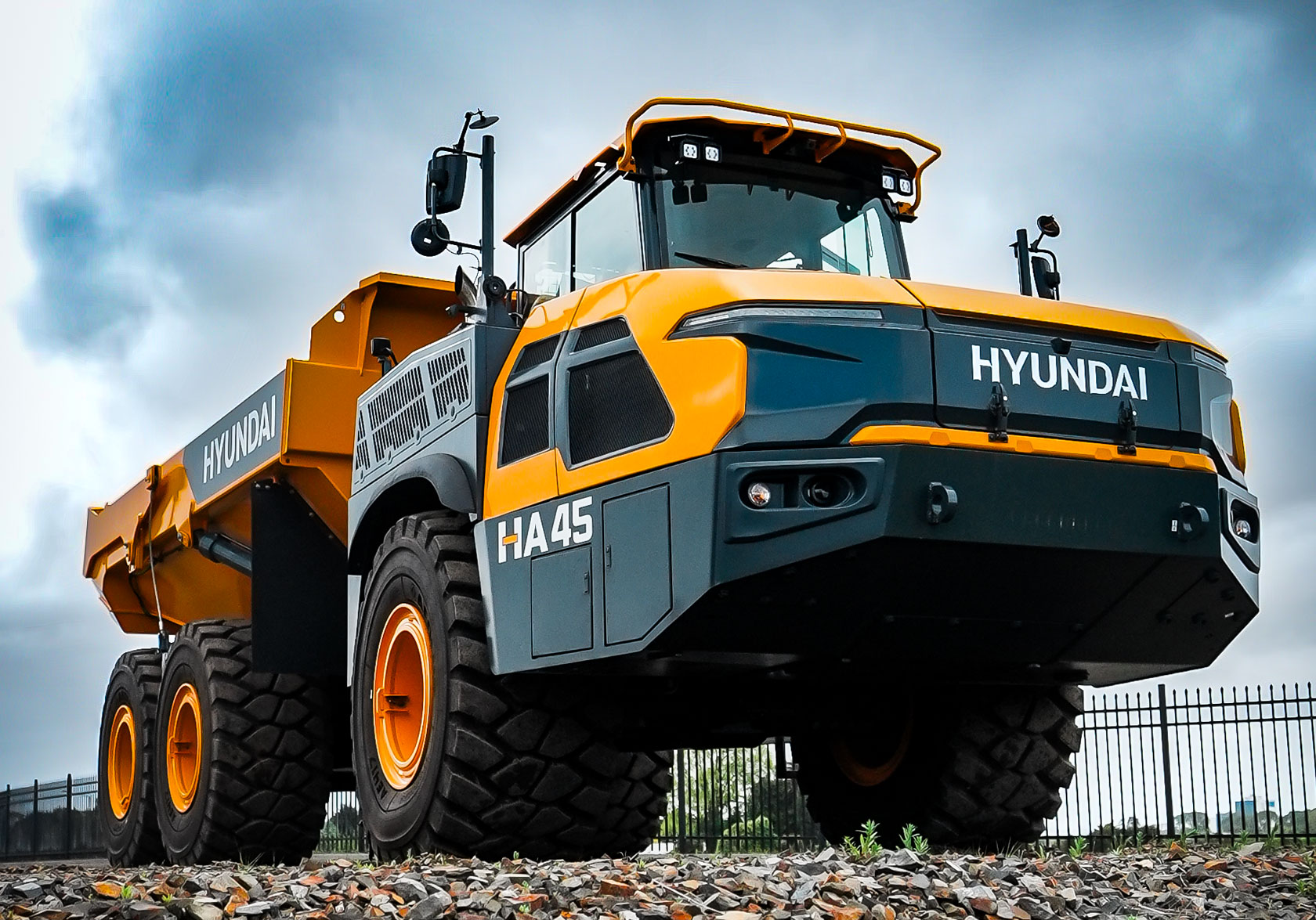

NEW Hyundai HA45HD Articulated Dump Trucks. Hauling in a quarry is punishing work. Alongside high capacity in poor underfoot conditions, maximum productivity and uptime are non-negotiable. The HA45HD is a 41,000 kg payload, 6WD articulated dump truck with permanent all-wheel drive, 100% hydraulic differential lock and a 368 kW (500 HP) engine.
request a quotedownload brochurespec sheetIntroducing the Hyundai HA45HD Articulated Dump Truck.
Quarry hauling is demanding. As well as needing high transport performance over poor, uneven ground, it also requires the highest operational safety and the best in productivity per litre of fuel.
The design? Purpose-built.Engineered around the job: moving material, shift after shift. Three rigid axles with permanent six-wheel drive, an optimised hydro-gas suspension system, and a sloping chassis that keeps wet and loose material where it belongs - in the body, not on the haul road.
Safe and productive transporting of loads.With a max payload of 41,000 kg and a body volume of 26.0 m³, this six-wheel drive articulated truck moves more per cycle. A 368 kW (500 HP) engine delivers 2,373 Nm of torque from just 1,300 rpm, giving strong low-end pull on gradients and up to 55 km/h travel speed through a full auto power-shift transmission with Tip-tronic. Front and rear differentials feature 100% hydraulic locking, while the automatic longitudinal differential lock maximises traction in challenging ground conditions. An adjustable hydraulic retarder holds speed on descents without touching the service brakes.
Safe workplace with a productive cab.The HA45HD's ROPS/FOPS cab features a wide view window for optimum visibility of the working environment, with a rear access cabin door, inclination indicator and electrically adjustable mirrors for safe movement around site. The swivelling, air-suspension operator seat, climate control and low noise levels make long hours in the seat genuinely comfortable. A 12" Android display brings control and safety information together in one place, including SAVM around-view, rear camera and tyre pressure monitoring.
A cost-effective powerhouse.The 12.5-litre Scania DC13 is matched to a simple driveline with one rear differential - fewer moving parts, easier and lower cost maintenance. Ground-level access to key service areas, a full open bonnet on electric actuator, oil-cooled wet disc brakes rated to 15,000 hours and Hi-mate telematics for remote diagnostics keep it earning. Automatic greasing, reversible fan and integrated maintenance information are available to cut downtime further.
Built to move more, for longer. Available now through Porter Equipment.
